Background

在前文Spark源码分析之-scheduler模块中提到了Spark在资源管理和调度上采用了Hadoop YARN的方式:外层的资源管理器和应用内的任务调度器;并且分析了Spark应用内的任务调度模块。本文就Spark的外层资源管理器-deploy模块进行分析,探究Spark是如何协调应用之间的资源调度和管理的

Spark最初是交由Mesos进行资源管理,为了使得更多的用户,包括没有接触过Mesos的用户使用Spark,Spark的开发者添加了Standalone的部署方式,也就是deploy模块。因此deploy模块只针对不使用Mesos进行资源管理的部署方式。

Deploy模块整体架构

deploy模块主要包含3个子模块:master, worker, client。他们继承于Actor,通过actor实现互相之间的通信。

  • Master:master的主要功能是接收worker的注册并管理所有的worker,接收client提交的application,(FIFO)调度等待的application并向worker提交。
  • Worker:worker的主要功能是向master注册自己,根据master发送的application配置进程环境,并启动StandaloneExecutorBackend
  • Client:client的主要功能是向master注册并监控application。当用户创建SparkContext时会实例化SparkDeploySchedulerBackend,而实例化SparkDeploySchedulerBackend的同时就会启动client,通过向client传递启动参数和application有关信息,client向master发送请求注册application并且在slave node上启动StandaloneExecutorBackend

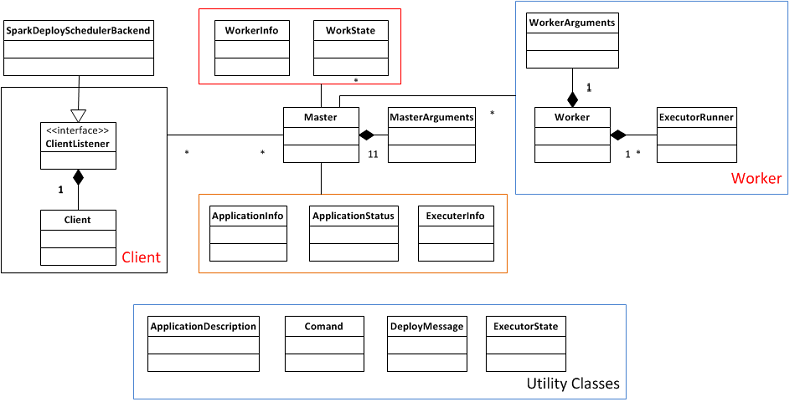

下面来看一下deploy模块的类图:

Deploy moduler class chart

Deploy模块通信消息

Deploy模块并不复杂,代码也不多,主要集中在各个子模块之间的消息传递和处理上,因此在这里列出了各个模块之间传递的主要消息:

  • client to master

    1. RegisterApplication (向master注册application)
  • master to client

    1. RegisteredApplication (作为注册application的reply,回复给client)
    2. ExecutorAdded (通知client worker已经启动了Executor环境,当向worker发送LaunchExecutor后通知client)
    3. ExecutorUpdated (通知client Executor状态已经发生变化了,包括结束、异常退出等,当worker向master发送ExecutorStateChanged后通知client)
  • master to worker

    1. LaunchExecutor (发送消息启动Executor环境)
    2. RegisteredWorker (作为worker向master注册的reply)
    3. RegisterWorkerFailed (作为worker向master注册失败的reply)
    4. KillExecutor (发送给worker请求停止executor环境)
  • worker to master

    1. RegisterWorker (向master注册自己)
    2. Heartbeat (定期向master发送心跳信息)
    3. ExecutorStateChanged (向master发送Executor状态改变信息)

#Deploy模块代码详解#

Deploy模块相比于scheduler模块简单,因此对于deploy模块的代码并不做十分细节的分析,只针对application的提交和结束过程做一定的分析。

Client提交application

Client是由SparkDeploySchedulerBackend创建被启动的,因此client是被嵌入在每一个application中,只为这个applicator所服务,在client启动时首先会先master注册application:

def start() {
  // Just launch an actor; it will call back into the listener.
  actor = actorSystem.actorOf(Props(new ClientActor))
}

override def preStart() {
  logInfo("Connecting to master " + masterUrl)
  try {
    master = context.actorFor(Master.toAkkaUrl(masterUrl))
    masterAddress = master.path.address
    master ! RegisterApplication(appDescription) //向master注册application
    context.system.eventStream.subscribe(self, classOf[RemoteClientLifeCycleEvent])
    context.watch(master)  // Doesn't work with remote actors, but useful for testing
  } catch {
    case e: Exception =>
      logError("Failed to connect to master", e)
      markDisconnected()
      context.stop(self)
  }
}

Master在收到RegisterApplication请求后会把application加到等待队列中,等待调度:

case RegisterApplication(description) => {
  logInfo("Registering app " + description.name)
  val app = addApplication(description, sender)
  logInfo("Registered app " + description.name + " with ID " + app.id)
  waitingApps += app
  context.watch(sender)  // This doesn't work with remote actors but helps for testing
  sender ! RegisteredApplication(app.id)
  schedule()
}

Master会在每次操作后调用schedule()函数,以确保等待的application能够被及时调度。

在前面提到deploy模块是资源管理模块,那么Spark的deploy管理的是什么资源,资源以什么单位进行调度的呢?在当前版本的Spark中,集群的cpu数量是Spark资源管理的一个标准,每个提交的application都会标明自己所需要的资源数(也就是cpu的core数),Master以FIFO的方式管理所有的application请求,当资源数量满足当前任务执行需求的时候该任务就会被调度,否则就继续等待,当然如果master能给予当前任务部分资源则也会启动该application。schedule()函数实现的就是此功能。

def schedule() {
  if (spreadOutApps) {
    for (app <- waitingApps if app.coresLeft > 0) {
      val usableWorkers = workers.toArray.filter(_.state == WorkerState.ALIVE)
                                 .filter(canUse(app, _)).sortBy(_.coresFree).reverse
      val numUsable = usableWorkers.length
      val assigned = new Array[Int](numUsable) // Number of cores to give on each node
      var toAssign = math.min(app.coresLeft, usableWorkers.map(_.coresFree).sum)
      var pos = 0
      while (toAssign > 0) {
        if (usableWorkers(pos).coresFree - assigned(pos) > 0) {
          toAssign -= 1
          assigned(pos) += 1
        }
        pos = (pos + 1) % numUsable
      }
      // Now that we've decided how many cores to give on each node, let's actually give them
      for (pos <- 0 until numUsable) {
        if (assigned(pos) > 0) {
          val exec = app.addExecutor(usableWorkers(pos), assigned(pos))
          launchExecutor(usableWorkers(pos), exec, app.desc.sparkHome)
          app.state = ApplicationState.RUNNING
        }
      }
    }
  } else {
    // Pack each app into as few nodes as possible until we've assigned all its cores
    for (worker <- workers if worker.coresFree > 0 && worker.state == WorkerState.ALIVE) {
      for (app <- waitingApps if app.coresLeft > 0) {
        if (canUse(app, worker)) {
          val coresToUse = math.min(worker.coresFree, app.coresLeft)
          if (coresToUse > 0) {
            val exec = app.addExecutor(worker, coresToUse)
            launchExecutor(worker, exec, app.desc.sparkHome)
            app.state = ApplicationState.RUNNING
          }
        }
      }
    }
  }
}

当application得到调度后就会调用launchExecutor()向worker发送请求,同时向client汇报状态:

def launchExecutor(worker: WorkerInfo, exec: ExecutorInfo, sparkHome: String) {
  worker.addExecutor(exec)
  worker.actor ! LaunchExecutor(exec.application.id, exec.id, exec.application.desc, exec.cores, exec.memory, sparkHome)
  exec.application.driver ! ExecutorAdded(exec.id, worker.id, worker.host, exec.cores, exec.memory)
}

至此client与master的交互已经转向了master与worker的交互,worker需要配置application启动环境

case LaunchExecutor(appId, execId, appDesc, cores_, memory_, execSparkHome_) =>
  val manager = new ExecutorRunner(
    appId, execId, appDesc, cores_, memory_, self, workerId, ip, new File(execSparkHome_), workDir)
  executors(appId + "/" + execId) = manager
  manager.start()
  coresUsed += cores_
  memoryUsed += memory_
  master ! ExecutorStateChanged(appId, execId, ExecutorState.RUNNING, None, None)

Worker在接收到LaunchExecutor消息后创建ExecutorRunner实例,同时汇报master executor环境启动。

ExecutorRunner在启动的过程中会创建线程,配置环境,启动新进程:

def start() {
  workerThread = new Thread("ExecutorRunner for " + fullId) {
    override def run() { fetchAndRunExecutor() }
  }
  workerThread.start()

  // Shutdown hook that kills actors on shutdown.
  ...
}

def fetchAndRunExecutor() {
  try {
    // Create the executor's working directory
    val executorDir = new File(workDir, appId + "/" + execId)
    if (!executorDir.mkdirs()) {
      throw new IOException("Failed to create directory " + executorDir)
    }

    // Launch the process
    val command = buildCommandSeq()
    val builder = new ProcessBuilder(command: _*).directory(executorDir)
    val env = builder.environment()
    for ((key, value) <- appDesc.command.environment) {
      env.put(key, value)
    }
    env.put("SPARK_MEM", memory.toString + "m")
    // In case we are running this from within the Spark Shell, avoid creating a "scala"
    // parent process for the executor command
    env.put("SPARK_LAUNCH_WITH_SCALA", "0")
    process = builder.start()

    // Redirect its stdout and stderr to files
    redirectStream(process.getInputStream, new File(executorDir, "stdout"))
    redirectStream(process.getErrorStream, new File(executorDir, "stderr"))

    // Wait for it to exit; this is actually a bad thing if it happens, because we expect to run
    // long-lived processes only. However, in the future, we might restart the executor a few
    // times on the same machine.
    val exitCode = process.waitFor()
    val message = "Command exited with code " + exitCode
    worker ! ExecutorStateChanged(appId, execId, ExecutorState.FAILED, Some(message),
                                  Some(exitCode))
  } catch {
    case interrupted: InterruptedException =>
      logInfo("Runner thread for executor " + fullId + " interrupted")

    case e: Exception => {
      logError("Error running executor", e)
      if (process != null) {
        process.destroy()
      }
      val message = e.getClass + ": " + e.getMessage
      worker ! ExecutorStateChanged(appId, execId, ExecutorState.FAILED, Some(message), None)
    }
  }
}

ExecutorRunner启动后worker向master汇报ExecutorStateChanged,而master则将消息重新pack成为ExecutorUpdated发送给client。

至此整个application提交过程基本结束,提交的过程并不复杂,主要涉及到的消息的传递。

Application的结束

由于各种原因(包括正常结束,异常返回等)会造成application的结束,我们现在就来看看applicatoin结束的整个流程。

application的结束往往会造成client的结束,而client的结束会被master通过Actor检测到,master检测到后会调用removeApplication()函数进行操作:

def removeApplication(app: ApplicationInfo) {
  if (apps.contains(app)) {
    logInfo("Removing app " + app.id)
    apps -= app
    idToApp -= app.id
    actorToApp -= app.driver
    addressToWorker -= app.driver.path.address
    completedApps += app   // Remember it in our history
    waitingApps -= app
    for (exec <- app.executors.values) {
      exec.worker.removeExecutor(exec)
      exec.worker.actor ! KillExecutor(exec.application.id, exec.id)
    }
    app.markFinished(ApplicationState.FINISHED)  // TODO: Mark it as FAILED if it failed
    schedule()
  }
}

removeApplicatoin()首先会将application从master自身所管理的数据结构中删除,其次它会通知每一个work,请求其KillExecutor。worker在收到KillExecutor后调用ExecutorRunnerkill()函数:

case KillExecutor(appId, execId) =>
  val fullId = appId + "/" + execId
  executors.get(fullId) match {
    case Some(executor) =>
      logInfo("Asked to kill executor " + fullId)
      executor.kill()
    case None =>
      logInfo("Asked to kill unknown executor " + fullId)
  }

ExecutorRunner内部,它会结束监控线程,同时结束监控线程所启动的进程,并且向worker汇报ExecutorStateChanged

def kill() {
  if (workerThread != null) {
    workerThread.interrupt()
    workerThread = null
    if (process != null) {
      logInfo("Killing process!")
      process.destroy()
      process.waitFor()
    }
    worker ! ExecutorStateChanged(appId, execId, ExecutorState.KILLED, None, None)
    Runtime.getRuntime.removeShutdownHook(shutdownHook)
  }
}

Application结束的同时清理了master和worker上的关于该application的所有信息,这样关于application结束的整个流程就介绍完了,当然在这里我们对于许多异常处理分支没有细究,但这并不影响我们对主线的把握。

End

至此对于deploy模块的分析暂告一个段落。deploy模块相对来说比较简单,也没有特别复杂的逻辑结构,正如前面所说的deploy模块是为了能让更多的没有部署Mesos的集群的用户能够使用Spark而实现的一种方案。

当然现阶段看来还略微简陋,比如application的调度方式(FIFO)是否会造成小应用长时间等待大应用的结束,是否有更好的调度策略;资源的衡量标准是否可以更多更合理,而不单单是cpu数量,因为现实场景中有的应用是disk intensive,有的是network intensive,这样就算cpu资源有富余,调度新的application也不一定会很有意义。

总的来说作为Mesos的一种简单替代方式,deploy模块对于推广Spark还是有积极意义的。
